Manufacturing stainless steel tubing for over 40 years How It's Made

To understand our process, read on below.

Process

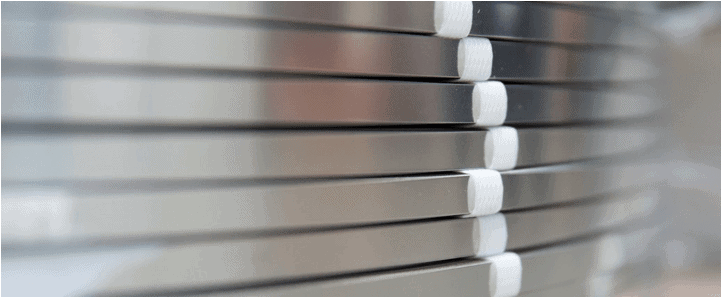

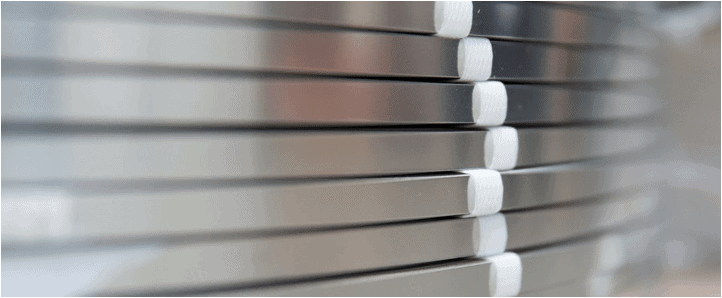

Slitting

  • Performed by approved suppliers
  • Strict specifications ensure repeatability.
  • Coils supplied in long lengths
Slitting

Process

Forming & Welding

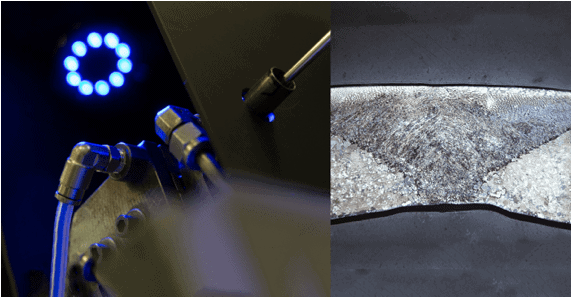

Forming And Laser Welding

  • Precision roll forming mills create uniform product.
  • Defect detection is integrated into the process.
  • The strip is welded into coils in a continuous process.
Forming & Laser Welding 1

Process

Plugging

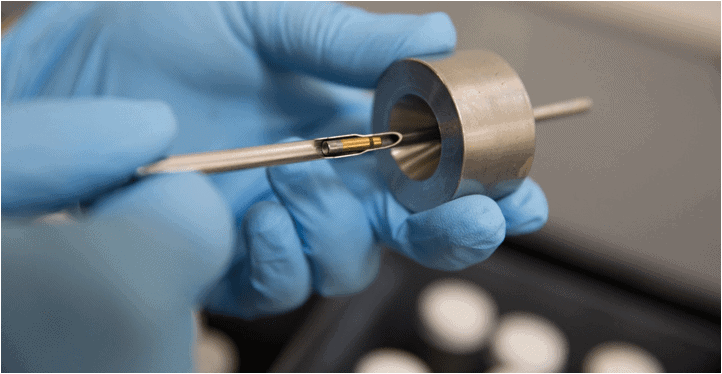

Plugging

  • This process fine-tunes wall thickness to tight tolerances.
  • The floating plug smooths the finish of the ID.
  • The surface finish is determined by the percent of plugging versus sinking.
  • This is the primary technology used in Brite Draw and Matte products.
Plugging

Process

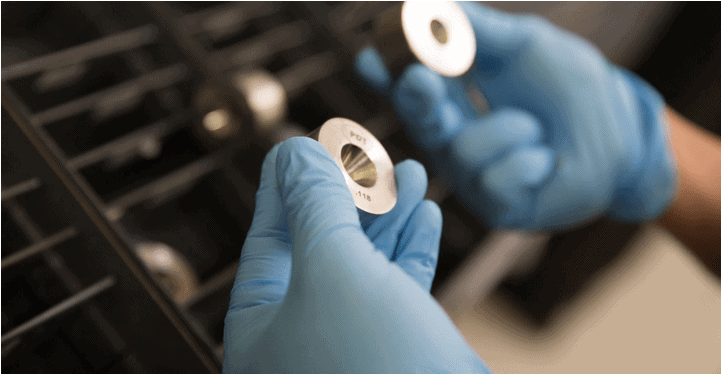

Sinking

Sinking

  • The tubing’s outside diameter is reduced through a series of dies.
  • Reduction causes cold work, which increases tensile strength.
  • This is the primary technology used in K-Form products.
Sinking

Process

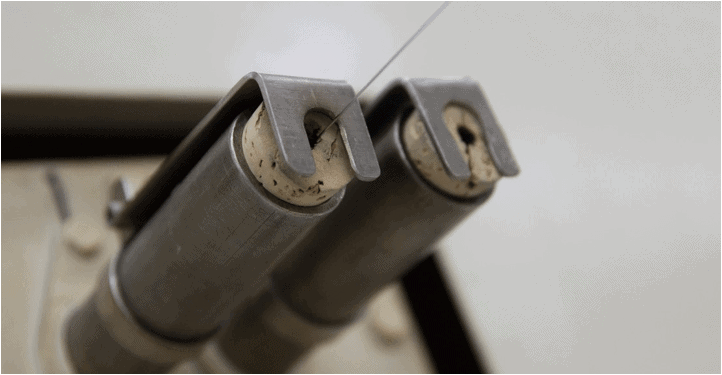

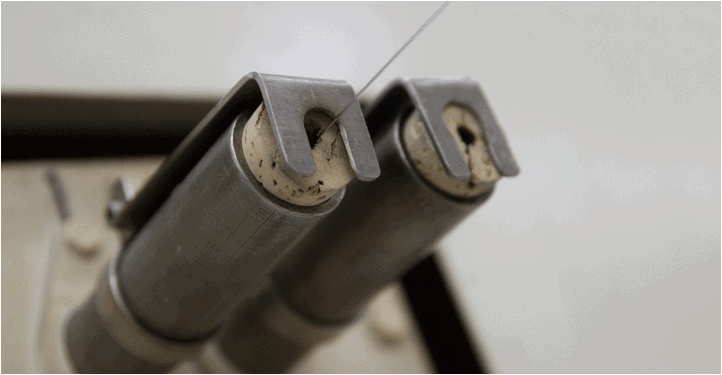

Heat Treating

  • Heat treating tailors custom material properties.
  • Annealing relieves stress and allows for more reduction.
  • The coils are heat treated inline.
Heat Treating

Process

Centerless Grinding

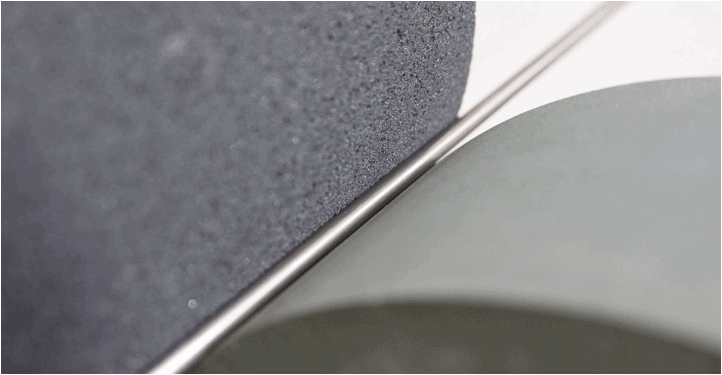

Centerless Grinding

  • This equipment can hold tight OD tolerances.
  • Grinding removes wall thickness for high OD/wall ratio designs.
Centerless Grinding

Process

Straigtening

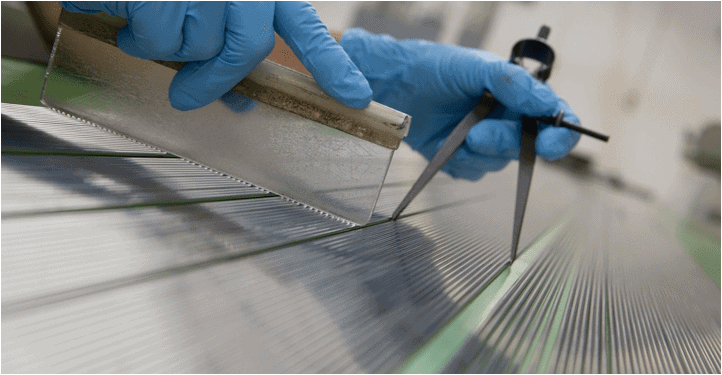

Straightening

  • A rotary straightener balances internal stress to remove coil cast.
  • Parts are visually inspected after straightening.
Straightening

Process

Cutting

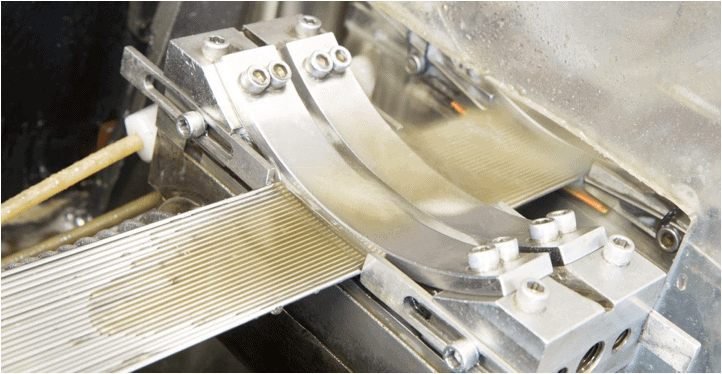

Cutting

We offer multiple cutting styles:

  • Shear – crimped end
  • Score break – 70-90% open
  • Electrolytic – 100% open, burr free, slight edge break
  • Laser – 100% open, burr free, sharp edge
  • Some parts can be tumbled to break edges.
Cutting

Process

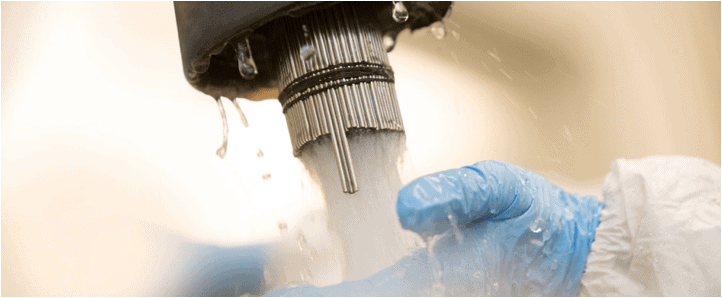

Cleaning

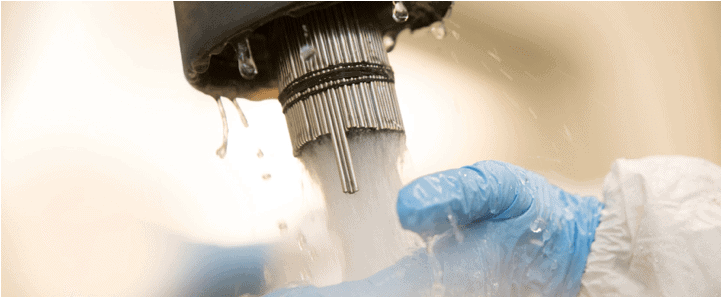

Cleaning

We offer different cleaning methods for different cutting styles:

  • Shear or score break – OD wipe
  • Electrolytic – ultrasonic: degreaser, brightened, DI flush
  • Laser – degreased, pickled, rinsed
Cleaning

Process

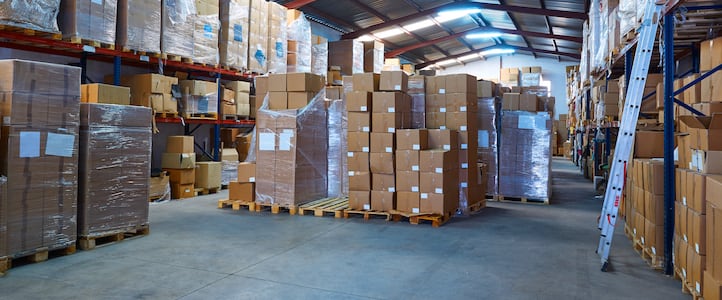

Packaging

  • Latex-free handling and packaging are available.
  • Packaging options suit different product configurations.
Packaging

Process

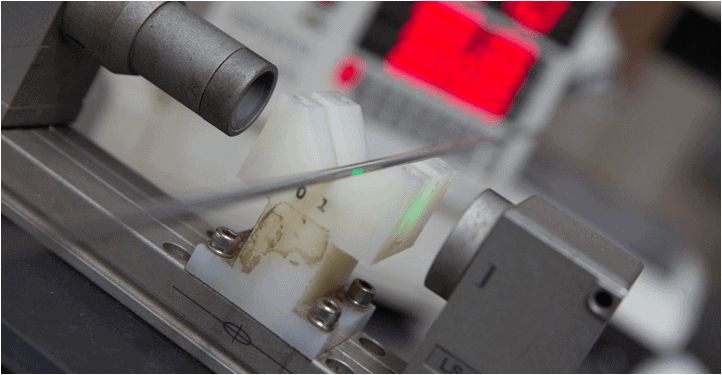

Final Inspection and Testing

Inspection

  • Quality and metallurgical analysis are conducted.
  • Physical properties: UTS, YS, %EL, hardness and surface finish
  • C=0, AQL sampling plan
Inspection

Process

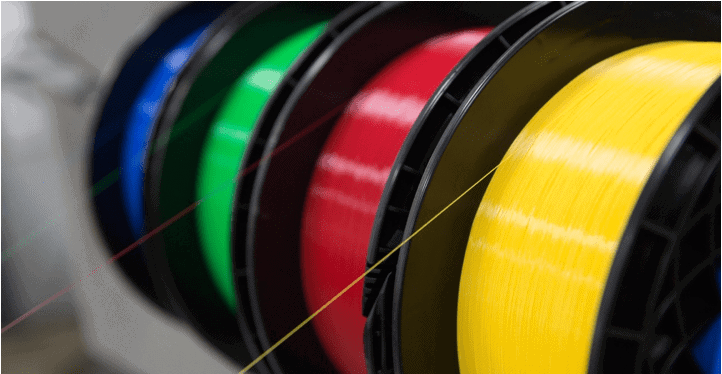

Fiber Optic Filled Tubing

  • Optical fibers are encapsulated in metal tubing.
  • Tubing provides strong, leak-free protection for optical fibers.
  • Fiber optic tubing is shipped on large spools to cable companies.
Fiber Optic Filled Tubing

Download Our How It's Made Document

Download our How It's Made process in PDF or PowerPoint formats to share with your team.
